ALLEN & HEATH SQ7
About ALLEN & HEATH SQ7

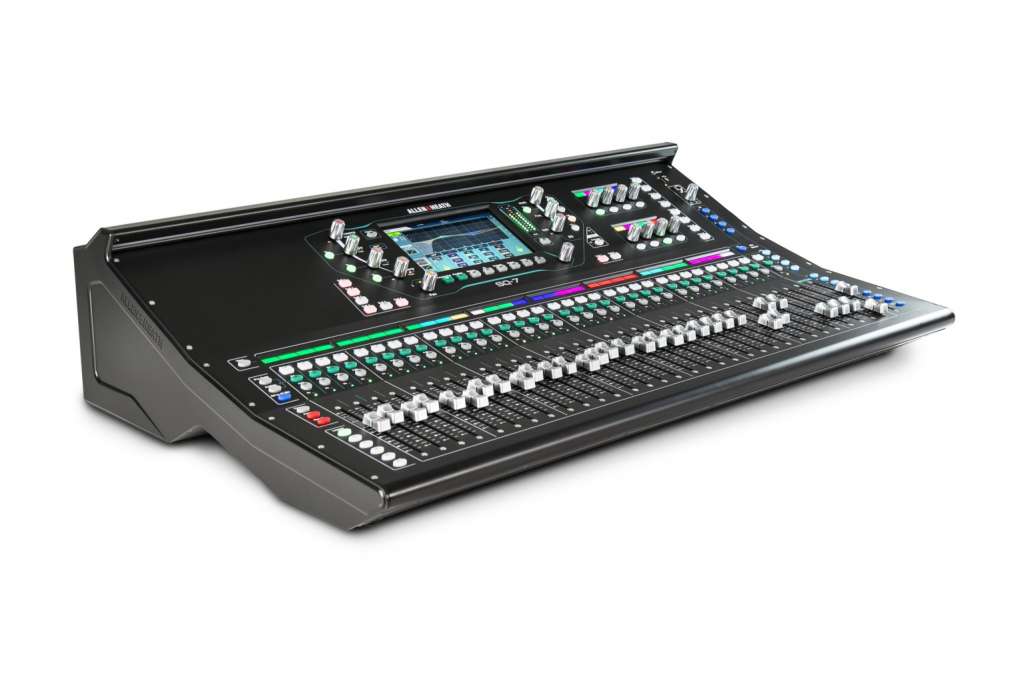

SQ-7 is the 33-fader flagship console in the SQ series, powered by Allen & Heath’s revolutionary 96kHz XCVI FPGA engine. Created to excel in demanding scenarios such as AV, corporate events, live productions and houses of worship, SQ-7 offers pristine high-resolution audio quality and an ultra-low latency of <0.7ms. The console features 32 exceptional onboard mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.
SQ comes equipped with all the processing you need to craft the perfect mix. Every one of the 48 inputs has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser, and Peak/RMS compressor for control and shaping of levels and transients. Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required. The XCVI core even allows for every compressor in SQ to have its own parallel path, without phase or coherency worries.
Features
- 96kHz FPGA processing
- 48 Input Channels
- DEEP Processing ready
- 33 Faders / 6 Layers
- 12 Stereo mixes + LR
- 3 Stereo Matrix
- 8 Stereo FX Engines + dedicated stereo returns
- 7” capacitive touchscreen
- SLink port for remote audio / expansion
- 64ch I/O Port for audio networking
- 32×32 USB audio interface
- SQ-Drive direct recording to USB
- AES output
- Chromatic channel metering
- Integrated LED illumination
- Dedicated physical controls
- 16 Assignable SoftKeys
- 8 Assignable Soft Rotaries
- Channel LCD displays
