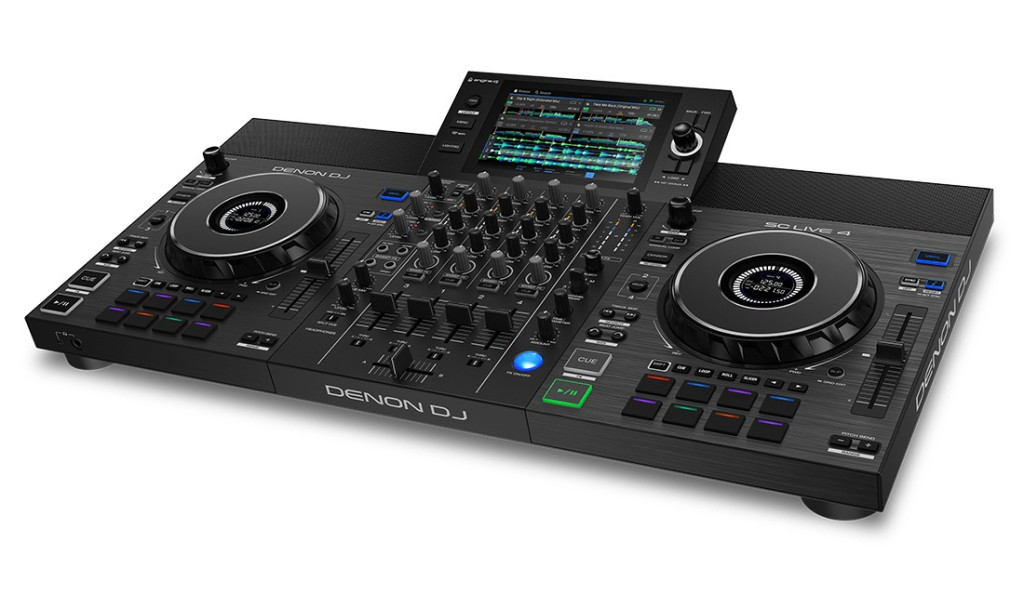

Denon Sc Live 4

About Denon Sc Live 4

• Audio
  • Bit Depth: 24 bit (44.1kHz Sample Rate)
  • Frequency Response: 20Hz - 20kHz, +/- 0.5dB
  • Dynamic Range: > 110dB, 1kHz @ 0dBFS, A-Weighted
  • Signal-to-Noise Ratio: > 92 dB Max Out – Dynamic Range
  • Channel Separation: < 107dB, 1kHz @ 0dBFS (Crosstalk from Left to Right/Right to Left is -107dB,1 kHz, unity)
  • T.H.D.
    • Microphone: < 0.0033%, 1kHz @0dBFS (1 kHz, unity)
    • Auxiliary: < 0.0048%, 1kHz @0dBFS (1 kHz, unity)

  ---

  • Analog Input
    • Microphone:
      • 110mVrms -60 dBu (minimum)
    • Auxiliary:
      • +15dBV (maximum)

  ---

  • Analog Output
    • Master, Balanced:
      • +18 dBu (maximum)
    • Master, Unbalanced:
      • +15 dBu (maximum)
    • Booth:
      • +18 dBu (maximum)
    • Headphone Output:
      • < 452mW @32ohms, 25mW @ 590 ohms

  ---

  • Speakers
    • Frequency Response:
      • 20Hz - 20kHz, +/- 1dB

  ---

  • Network
    • Wi-Fi

  ---

  • Connections
    • (1) XLR outputs (main left/right, balanced)
    • (1) RCA output pair (main left/right, unbalanced)
    • (1) 1/4" TRS booth output pair
    • (1) 1/4" (6.35mm) stereo output (headphones)
    • (1) 1/8" (3.5mm) stereo output (headphones)
    • (1) 1/4" (6.35mm) TRS mic input
    • (1) XLR & TRS Combo Jack (6.35mm) mic input
    • (1) RCA pair Aux input
    • (2) USB 2.0 ports (for USB drives, Type A)
    • (1) USB port (to computer)
    • (1) SD card slot (SD, SDDHC, SDXC)

  ---

  • Power
    • Connection: External power supply, DC, Center Positive, 12.0 V 3.0 A
    • Input Voltage: 100–240 VAC, 50/60 Hz

  ---

  • Dimensions (Width x Depth x Height)
    • 28.3” x 15.9” x 3.9”

  ---

  • Weight
    • 12.8 lbs.
