About LD ICOA15A (Pair)

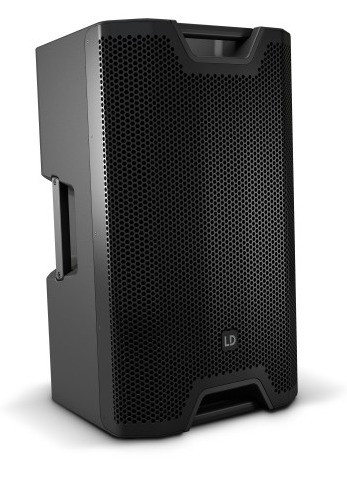

ICOA 15 A15“ Powered Coaxial PA Loudspeaker

Item No.: LDICOA15A
Series: ICOA
Versions:
A genuine all-rounder for full-range, satellite and monitor applications

128 dB max. SPL and 1200 W peak power

Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)

Horn-loaded woofer

DynX DSP with 4 presets, 3-band EQ and delay function

2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model

36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand

6 x M10 flying points

Shock-resistant front grille for optimal protection of the speaker

4 aluminium grips with ergonomic, rubber surface

Extensive, optionally available accessories for installation and transport


General
Product type
PA loudspeaker
Type
Powered
Low/mid Woofer dimensions
15 "
Woofer dimensions (mm)
381 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Horn
BEM optimized CD Horn
HF driver dimensions
1 "
HF driver dimention (mm)
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
HF driver voice coil
1.4 "
HF driver voice coil
35 mm
Amplifier
Class D
Dispersion (H x V)
90° x 50°
System Power (RMS)
300 W
Peak power
1200 W
Frequency response
48 Hz - 20000 Hz
Crossover frequency kHz
2 kHz
Max. SPL (Peak)
128 dB
Protection circuits
Multiband limiter, over voltage, over-current, thermal overload
Controls
2 x gain, On / off switch, Rotary/push encoder
Indicators
LC display
Mic/ line inputs
2
Mic-/ Line Input Connectors
6.3 mm jack Combination sockets (symmetrical), XLR
Line inputs
1
Line input connectors
3.5 mm TRS
Line outputs
1
Line output connectors
XLR
Power supply
SMPS
Power consumption
150 W
Ambient temperature (in operation)
0 - 40 °C
Operating voltage
100 V - 240 V AC / 50 - 60 Hz
Relative Humidity
< 80 %, not condensing
Fuse
T4AL 250 V
Cabinet material
Polypropylene
Cabinet construction
Bass Reflex
Mounting
36mm flange (0°, 5°), 6 x M10 flying points
Monitor angle
55 °
Width
416 mm
Height
695 mm
Depth
415 mm
Weight
24,3 kg
Accessories (included)
Power cord
